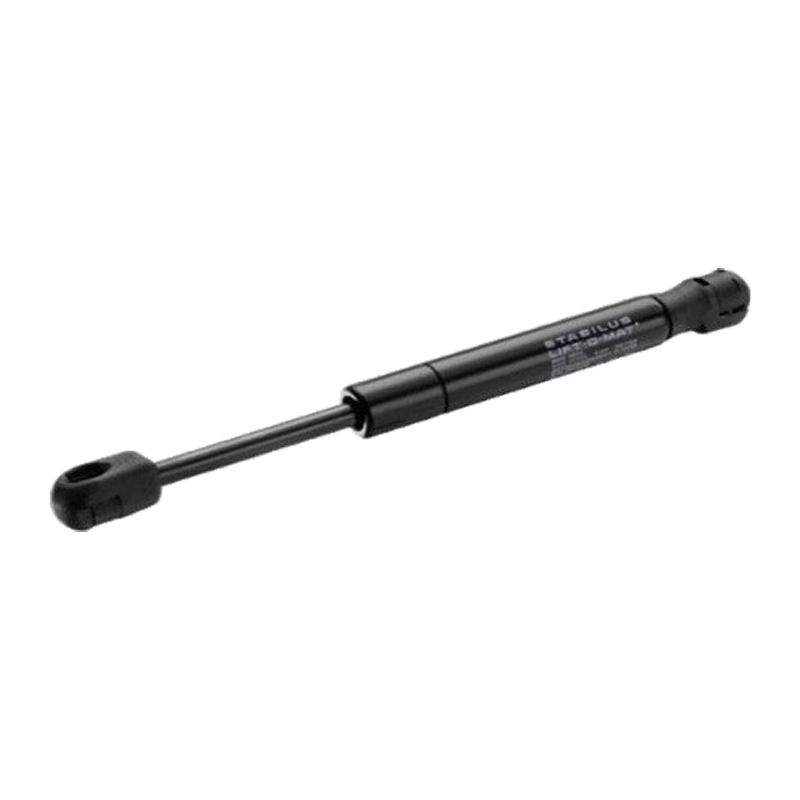

Stabilius Lift-O-Mat Gas Strut Range

Stabilius Lift-O-Mat Gas Strut Range

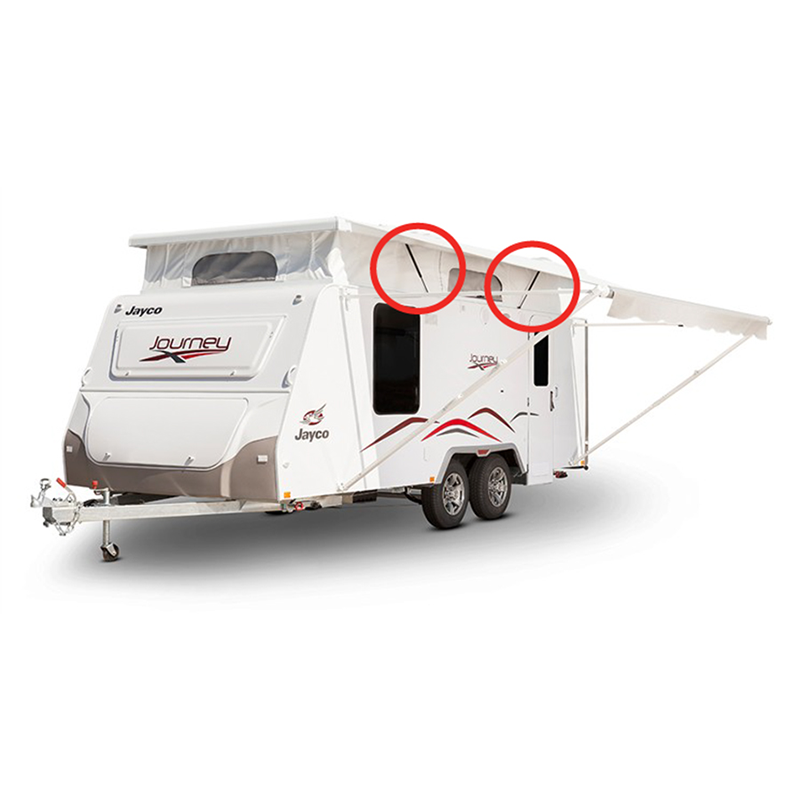

The Stabilus Lift-O-Mat Gas Struts are non-locking gas struts. They are used in a range of industries outside of RV and caravanning, such as mechanical, automotive, medical, marine, and furniture!

Product Description

They are used whenever components must be brought conveniently into a defined end position. A Lift-O-Mat can control the extension force and damping action depending on the function, ensuring user-friendly motion sequences.

Advantages and Features:

  • Optimised weight compensation during liftings, lowering, opening and closing actions
  • Broad range of sizes and force variants available as standard products
  • Flat Spring characteristic curve; i.e. low force increase, even with high forces and large strokes
  • Choice of linear, progressive or decreasing spring characteristic curves
  • Compact form factor for installation in small spaces
  • Large variety of end fittings for efficient assembly
  • Dampened adjustment motion over defined ranges or continuously
  • Extension speed control possible

Specifications

  • Product Code  Description
    250-00202  Stabilus Gas Strut 315.5mm/50N/120mm Stroke. 5025DT
    250-00204  Stabilus Gas Strut 315.5mm/60N/120mm Stroke. 658954
    250-00206  Stabilus Gas Strut 315.5mm/150N/120mm Stroke. 5031DG
    250-00208  Stabilus Gas Strut 315.5mm/100N/120mm Stroke. 5027DJ
    250-00210  Stabilus Gas Strut 315.5mm/250N/120mm Stroke. 5033DX
    250-00212  Stabilus Gas Strut 415mm/175N/150mm Stroke. 327207
    250-00214  Stabilus Gas Strut (Eyelet) 455mm/200N/180mm Stroke. 847748
    250-00216  Stabilus Gas Strut 485mm/250N/200mm Stroke. 094560
    250-00218  Stabilus Gas Strut 485mm/400N/200mm Stroke. 83755
    250-00220  Stabilus Gas Strut 485mm/125N/200mm Stroke. 807604
    250-00222  Stabilus Gas Strut 485mm/600N/200mm Stroke. 083771
    250-00224  Stabilus Gas Strut 485mm/200N/200mm Stroke. 083739
    250-00226  Stabilus Gas Strut 485mm/280N/200mm Stroke. 266015
    250-00228  Stabilus Gas Strut 501mm/100N/200mm Stroke. 860360
    250-00230  Stabilus Gas Strut 525mm/200N/220mm Stroke. 083828
    250-00232  Stabilus Gas Strut525mm/150N/220mm Stroke. 094595
    250-00234  Stabilus Gas Strut 585mm/300N/250mm Stroke. 083909
    250-00236  Stabilus Gas Strut 585mm/250N/250mm Stroke. 094641
    250-00238  Stabilus Gas Strut 825mm/330N/354mm Stroke. 7645WI
    250-00240  Stabilus Gas Strut 825mm/240N/354mm Stroke. 7643WS
    250-00242  Stabilus Gas Strut 825mm/290N/354mm Stroke. 7644WN
    250-00244  Stabilus Gas Strut 825mm/435N/354mm Stroke. 8671ZR
    250-00246  Stabilus Gas Strut 825mm/500N/354mm Stroke. 8672ZR
    250-00248  Stabilus Gas Strut 825mm/600N/354mm Stroke. 8673ZH
    250-00250  Stabilus Gas Strut 825mm/630N/354mm Stroke. 287540
    250-00252  Stabilus Gas Strut 902.5mm/525N/400mm Stroke. 556017
    250-00254  Stabilus Gas Strut 195mm/200N/60mm Stroke. 1345DS
    250-00256  Stabilus Gas Strut 195.5mm/350N/60mm Stroke. 4911DR
    250-00258  Stabilus Gas Strut 375mm/50N/150mm Stroke. 5072DE
    250-00260  Stabilus Gas Strut 825mm/700N/354mm Stroke. 8674Z
    250-00262  Stabilus Stone-Shield Gas Strut Brackets. 469182
    250-00264  Stabilus Replacement M8 Ball-Stud (each) t/s Gas Strut
