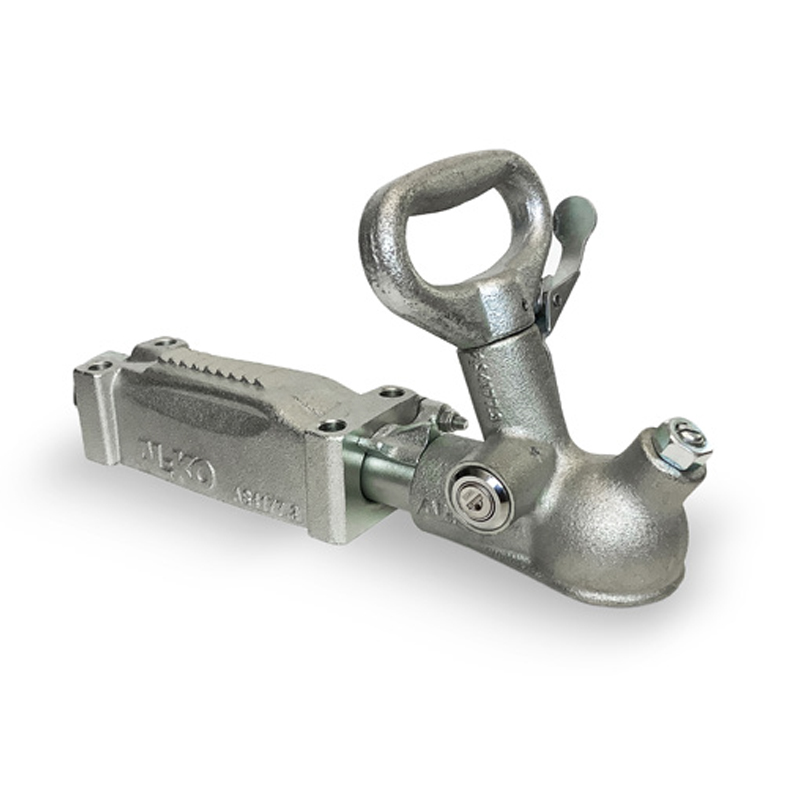

ALKO LOCKABLE 2000KG 50MM OVERRIDE COUPLING - PLATED (NO H/BRAKE INC)

ALKO LOCKABLE 2000KG 50MM OVERRIDE COUPLING - PLATED (NO H/BRAKE INC)

Product Code:

450-05131
ALKO LOCKABLE 2000KG 50MM OVERRIDE COUPLING - PLATED (NO H/BRAKE INC)

Caravan and Trailers are a desirable however costly investment. Protection has not only become a way of the times it’s apart of your insurance requirements. AL-KO have incorporated locking technology into the body of the coupling ensuring you never forget or loose a vital part of your protection leaving you vulnerable.

Product Description

  • The lock is integrated into the coupling body
  • XL Grip for optimal ergonomics + ease of use compared to the classic design.
  • AL-KO standard mounting options for a straight switch over.
  • Each coupling comes with 2 keys.

Specifications

  • Capacity (ATM*)

    2000 kg

    Recommended Application

    Medium trailers, Campers, Boat trailer. (8x5 Tradie**)

    Suits Braking System

    Over run Hydraulic & Over run Mechanical

    Mounting Pattern
    (hole centres)

    4 bolt - 184mm x 54mm

    Bolt Hole Size

    13.5mm

    Recommended Bolt Size

    12mm

    Recommended Bolt Grade

    Grade A4-80

    Supporting Products

    3/4” Hydraulic conversion plate 610943.
    7/8” Hydraulic conversion plate 610944.
    Mechanical conversion plate 614053.
