RENOGY CORE | 12V 100Ah LiFePO4 Battery 260x169x211mm.
RENOGY CORE | 12V 100Ah LiFePO4 Battery 260x169x211mm.

RENOGY CORE | 12V 100Ah LiFePO4 Battery 260x169x211mm.

Product Code:

500-11050

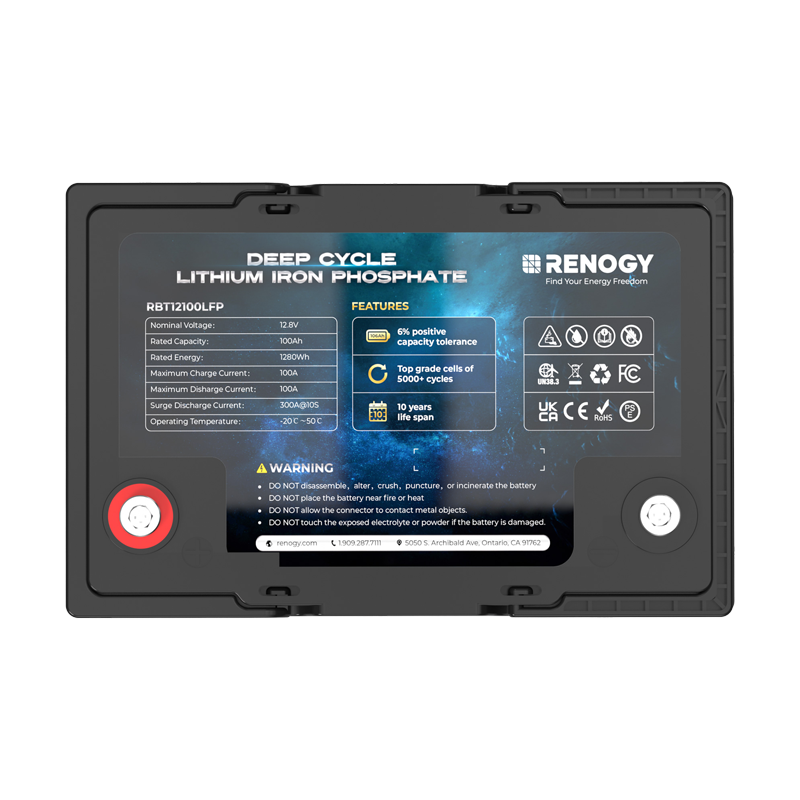

RENOGY CORE | 12V 100Ah LiFePO4 Battery 260x169x211mm.

Power your next adventure with the Renogy CORE 12V 100Ah Lithium Iron Phosphate (LiFePO₄) Battery, a lightweight, reliable energy solution built for life on the road. Whether you're heading off-grid, upgrading your caravan, or fitting out a camper trailer, this compact battery is made to deliver dependable power when you need it most.

Product Description

The CORE 100Ah battery packs impressive capacity into a rugged, vibration-resistant case that’s perfect for tough Australian touring conditions. It features a built-in Battery Management System (BMS) with smart protection against overcharging, over-discharging, short circuits, and low-temperature charging, giving you safe, worry-free performance.

With up to 5000 cycles at 80% depth of discharge (DoD), the CORE battery outlasts traditional lead-acid batteries by a wide margin, offering excellent long-term value for serious travellers. Plus, it supports flexible installation with options to connect in series, parallel, or a combination of both, making it easy to customise your power setup.

Key Features:

  • Reliable Lithium Power – 100Ah capacity with up to 6% more usable energy than rated
  • Built-in BMS Protection – Safe, hassle-free performance with automatic safeguards
  • Compact & Lightweight – Only 11.5kg and easy to install in tight spaces
  • Weather-Resistant Design – IP65-rated for dust and water resistance
  • Long Cycle Life – Up to 5000 cycles at 80% DoD for long-term reliability
  • Expandable System – Connect multiple batteries to suit your energy needs

Specifications

    • Battery Type: Lithium Iron Phosphate (LiFePO₄)
    • Rated Capacity: 100Ah
    • Nominal Voltage: 12.8V
    • Cycle Life: 5000 cycles (80% DOD, 80% End of Life at 25°C)
    • Charge Voltage: 14.4V
    • Maximum Charge Current: 100A
    • Maximum Discharge Current: 100A
    • Charge Temperature Range: 0°C to 55°C
    • Discharge Temperature Range: -20°C to 60°C
    • Connection Method: Up to 4 in series, 8 in parallel, or 4P4S configuration
    • Protection Rating: IP65 (dust and water resistant)
    • Housing Material: ABS
    • Dimensions (L x W x H): 260 x 169 x 211 mm
    • Weight: 10.5 kg
    • Terminal Bolt Size: M8 (includes 2 x long terminal bolts)
