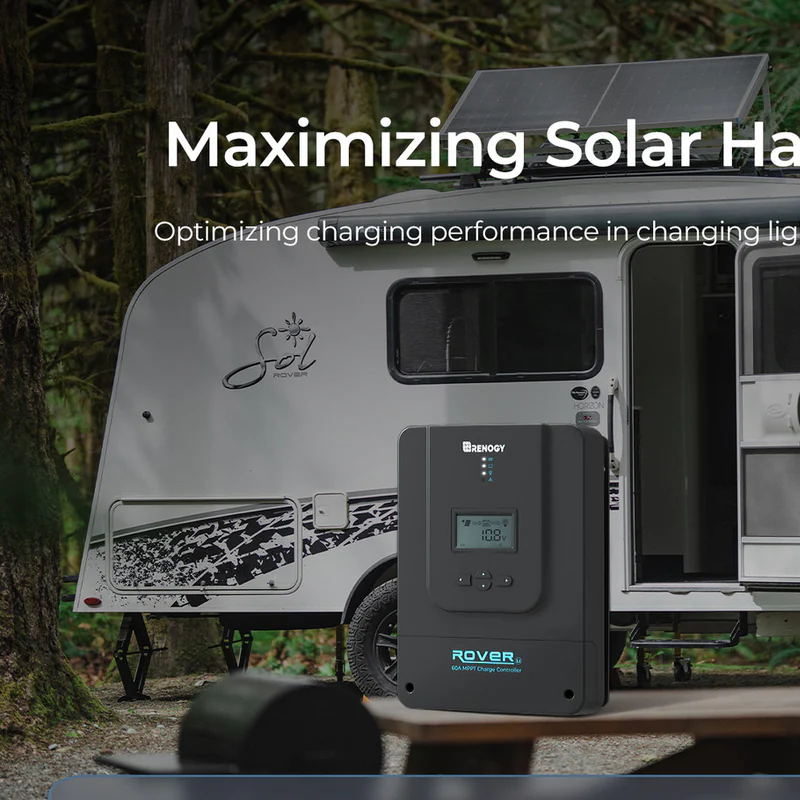

RENOGY CORE | Rover Li 60 Amp MPPT Solar Charger

Product Code:

500-11100
RENOGY CORE | Rover Li 60 Amp MPPT Solar Charger

Product Description

High-Capacity Solar Control for Serious Systems

The RENOGY CORE Rover Li 60A MPPT Solar Charger takes the proven reliability of the Rover series and scales it for higher energy demand. With intelligent tracking, wide system compatibility and strong safety protection, it delivers efficient solar charging for large off grid systems and high capacity battery banks.

More Power, Same Precision

Using Maximum Power Point Tracking (MPPT) technology, the Rover 60A captures and converts solar energy with up to 99% tracking efficiency. It supports 12V, 24V, 36V and 48V battery systems, automatically adjusting to voltage and chemistry for smooth integration. Its expanded input handling—up to 3200W on 48V setups—makes it ideal for advanced systems that rely on steady, high-output charging.

Protection You Can Depend On

Built for long-term stability, the controller safeguards against reverse polarity, overvoltage, overcurrent and short circuit faults. The solid aluminium housing and IP32 enclosure keep the unit secure in harsh environments, while intelligent temperature compensation maintains charging accuracy in extreme heat or cold.

Smart Monitoring Options

Compatible with the Renogy BT-1 Bluetooth Module, the Rover 60A can be linked to the Renogy DC Home App for remote access. Users can monitor performance, review historical data and fine-tune settings directly from a mobile device. It’s a professional-grade controller with the accessibility and visibility expected from modern energy systems.

Specifications

    • Nominal Voltage: 12V / 24V / 36V / 48V auto recognition (for non-lithium batteries)
    • Rated Charge Current: 60A
    • Rated Load Current: 20A
    • Max PV Input Power: 800W (12V), 1600W (24V), 2400W (36V), 3200W (48V)
    • Max PV Input Voltage: 140V DC
    • Self Consumption: 0.7W–1.2W
    • Operating Temperature: -35°C to 45°C
    • Temperature Compensation: -3mV/°C/2V
    • Enclosure: IP32
    • Terminals: 25mm² (4 AWG)
    • Dimensions: 285 × 205 × 102 mm
    • Weight: 3.6 kg
    • Certifications: CE, RoHS
    • Warranty: 2 year
