RENOGY PRO | IP67 50A DCDC Battery Charger With MPPT

Product Code:

500-11018
RENOGY PRO | IP67 50A DCDC Battery Charger With MPPT

Product Description

Features & Pro’s

  • IP67 Protection (Dust Proof & Water Proof – 1m submerged in freshwater for up to 30mins)
  • Compact Size at 178.2 x 121.5 x 37.5mm and 1.86kg Weight

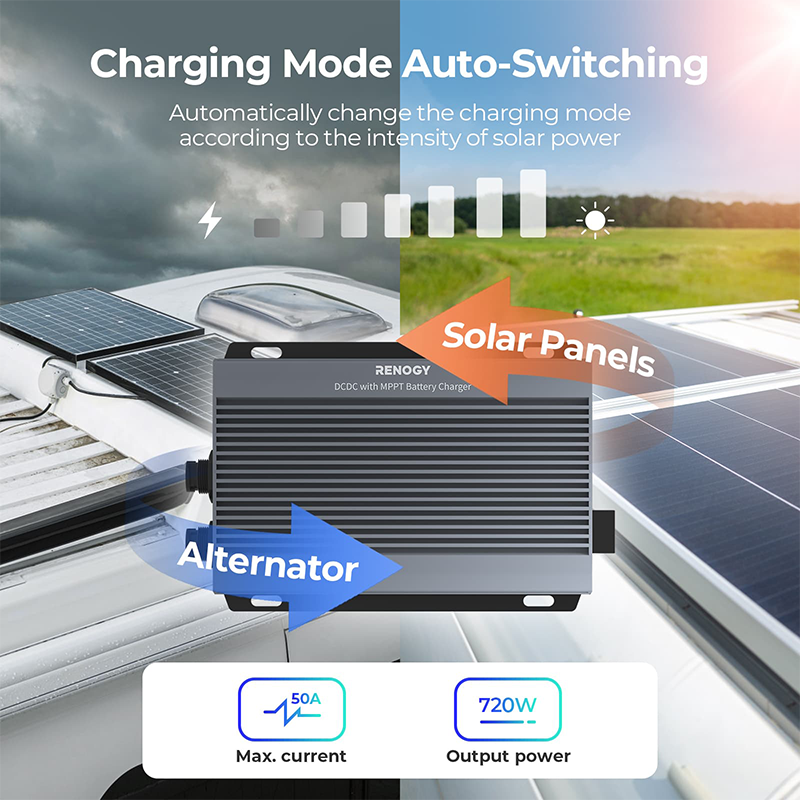

  • Intelligent Dual Charging Mode - Intelligently combining vehicle and solar power, this charger automatically adjusts modes based on sunlight intensity, ensuring optimal energy use at all times.
  • Compatible with a Wider Range of Voltage
  • Optimized Charging Efficiency - With 720W charging power, this battery charger can fully charge a 1.2kWh battery in just 1.8 hours.
  • Enhanced Charging Safety – Over Voltage Protection, Over Current Protection, Reverse Current Protection, Reverse Connection Protection, Overheat Protection, Battery Isolation
  • Drop Resistant – the sheet metal casing provides the charger with a durable shell, designed to withstand drops and impacts for long lasting performance
  • Temperature Resistant – built to endure extreme temperatures, this charger is capable of operation in temperatures from -35°C to 80°C (maintains full load performance up to 55°C)
  • Charges house battery while trickle charging the vehicles starter battery to ensure vehicles battery is also maintained (if set up this way)

Specifications

  • Model: RBC2125DS
    System Voltage: 12V/24V - 12V/24V
    Solar Input Voltage: 50 VDC
    Output Voltage: 9-32 VDC
    Alternator Input: 9-32 VDC
    Maximum Output Current Rating: 50A@12V;25A@24V
    Output Power: 720W
    Battery Types: AGM/SLD, GEL, FLOODED, LITHIUM
    Input Fuse Rating: 75A-100A
    Output Fuse Rating: 75A-100A
    Charging Efficiency: 0.97
    Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium);0mV / ℃ / 2V; no compensation (Lithium)
    Idle Power Consumption: <100mA
    Terminal Range: 8AWG-4AWG
    Communication Protocol: --40℃ to 80℃
    Humidity: Modbus ; RV-C
    Operating Temperature Range: -35℃ to 80℃
    Storage Temperature Range: -40℃ to 80℃
    Dimensions: 178.2 x 121.5 x 37.5mm
    Weight: 1.86 kg
    Certification: CE; RoHS; FCC Part 15 class B
    Warranty: 3-year material warranty
