RENOGY REGO | IP67 DC-DC with MPPT Battery Charger (Anderson)

Product Code:

500-11072
RENOGY REGO | IP67 DC-DC with MPPT Battery Charger (Anderson)

Product Description

Power Anywhere, Rain or Shine



When space is tight and conditions are unpredictable, your energy system needs to deliver without hesitation. The RENOGY REGO IP67 50A DC-DC with MPPT Battery Charger is built for environments where reliability, compactness and efficiency matter most. Slim, waterproof and impact resistant, it gives you a clean power solution that performs wherever the journey takes you.

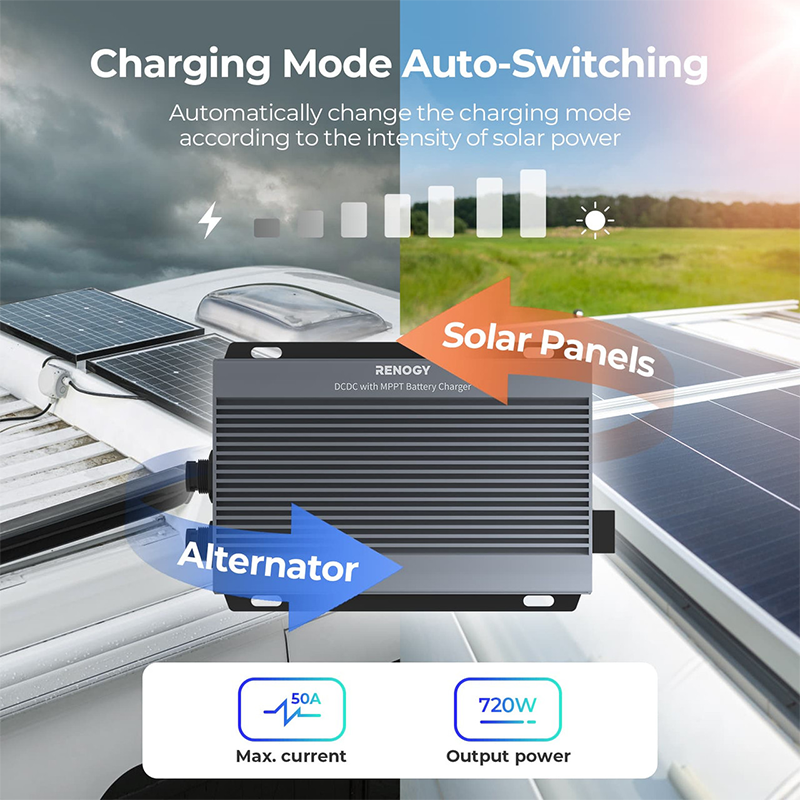

Smarter Charging Through Solar Priority

This charger uses intelligent boost and buck logic to work with both alternator and solar inputs, automatically choosing the stronger source. By prioritising solar energy, it reduces generator reliance and improves charging efficiency, making better use of every watt of sunshine. MPPT regulation captures up to 30% more solar power than traditional PWM controllers, giving you faster, cleaner charging when you need it most.

Compact Strength, Real Output

Despite its slim build, this unit delivers 720W of charging power and can charge a 1.2kWh battery bank in as little as 1.8 hours. It supports 12V/24V systems on both input and output, and uses Anderson connections for a quick, reliable setup that saves time during installation.

Durability Engineered In

With an IP67 waterproof rating, a wide temperature range from -35°C to 80°C and impact resistance, this charger thrives in harsh environments. Whether it’s mounted under a vehicle, in a canopy or tucked into a tight compartment, it’s designed to keep performing when exposed to dust, water and rough terrain.

Specifications

  • System Voltage: 12V/24V - 12V/24V
    Solar Input Voltage: 50 VDC
    Output Voltage: 9-32 VDC
    Alternator Input: 9-32 VDC
    Maximum Output Current Rating: 50A@12V;25A@24V Output Power: 720W
    Battery Types: AGM/SLD, GEL, FLD, LI, USER
    Input Fuse Rating: 75A-100A
    Output Fuse Rating: 75A-100A
    Charging Efficiency: 0.97
    Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium);0mV / ℃ / 2V; no compensation (Lithium)
    Idle Power Consumption: <100mA
    Terminal Range: 8AWG-4AWG
    Communication Protocol: Modbus ; RV-C

    Operating Temperature Range: -35℃ to 80℃
    Storage Temperature Range: -40℃ to 80℃
    Dimensions: 178.2 x 121.5 x 37.5mm
    Weight: 1.86 kg
    Certification: CE; RoHS; FCC Part 15 class B
    Warranty: 3-year material warranty
